Product Description

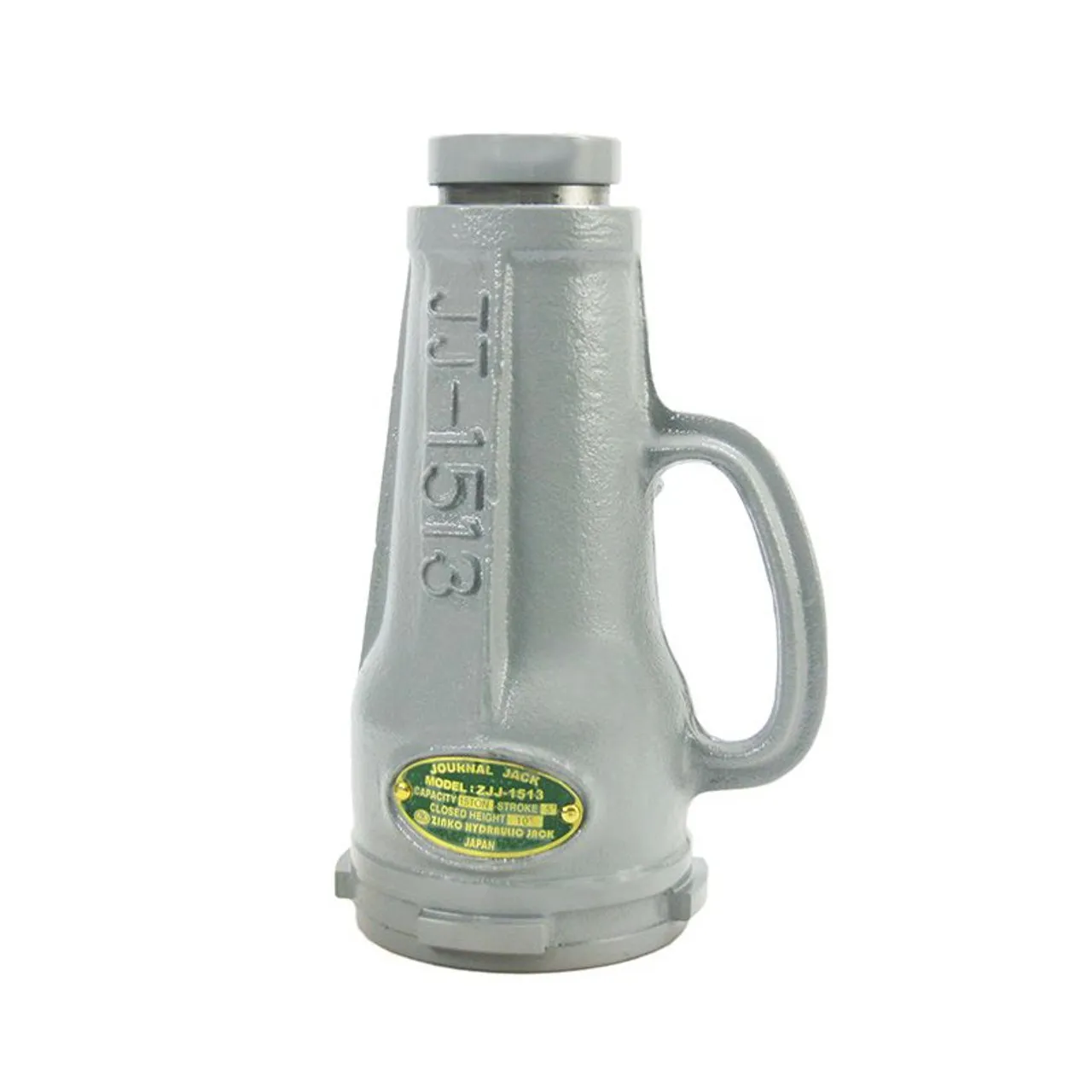

15 Ton 4.92" Stroke Journal Mechcanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.
Special Features:
- Unique construction bearing is made for longer life and smooth horizontal advance.
- Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
- Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
- Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
- Buttress threads will not creep down under load.
- Operable vertically or laterally (lateral movement requires optional traversing bed).
Country of Origin: Japan
More Information | Capacity (Tons) | 15 |
| Stroke (in) | 4.92 |
| Operation Force (Ft. / lb.) | 310 |
| Minimum Height (in) | 10.04 |
| Maximum Heights (in) | 14.96 |
| Saddle Diameter (in) | 2.48 |
| Base Diameter (in) | 3.03 |
| Weight (lbs) | 40.000000 |
Parts Breakdown
User Manual
Zinko ZJJ-1513 15ton 5" Stroke Journal Mechanical Jack
